Availability Route

An availability route sends an entity only to a destination that can currently accept it. Several availability routes can leave one source; they are tried in priority order, and pair well with a renege route for entities that never find room.

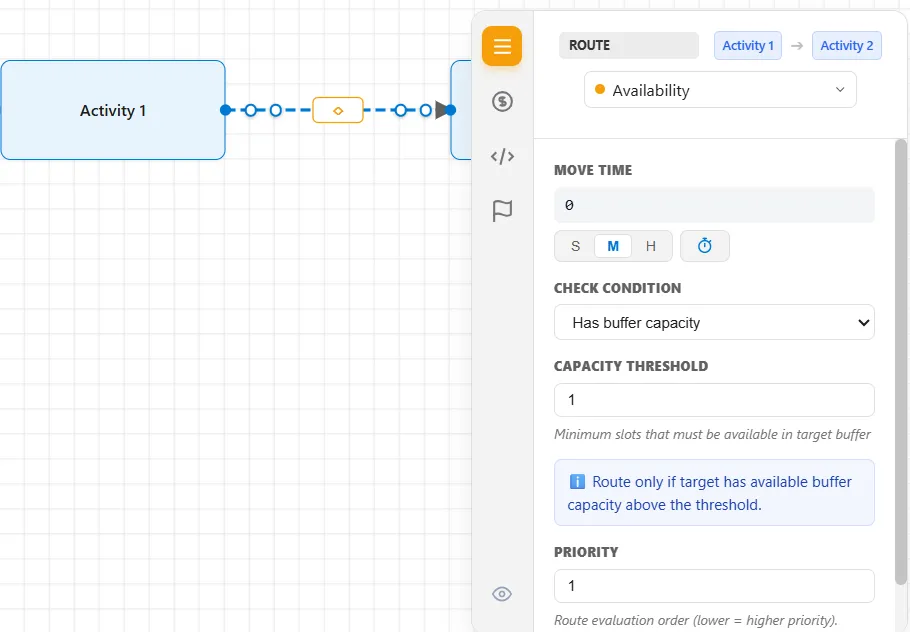

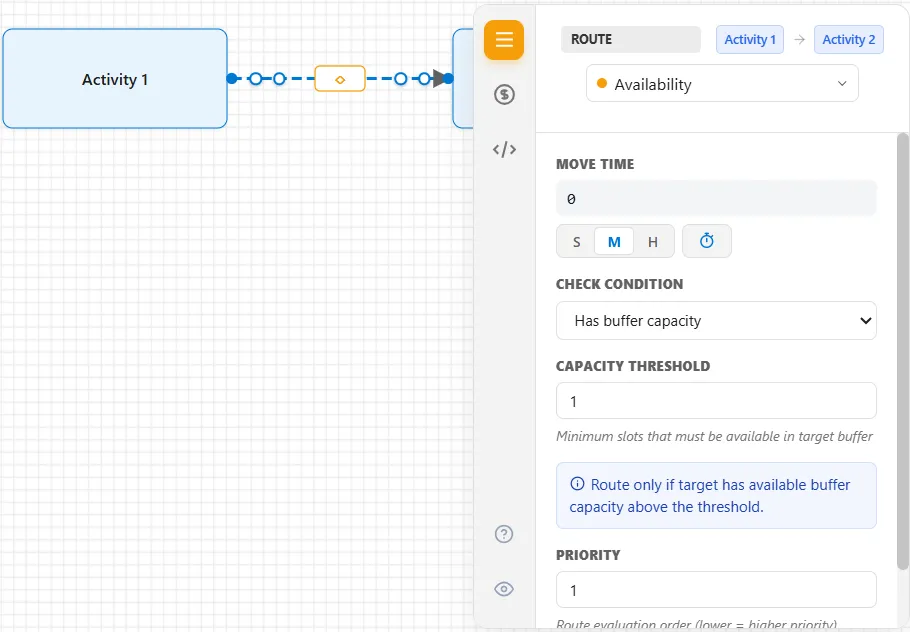

Options

• Check Condition: what counts as available: the destination Has buffer capacity, Is not blocked (on shift, not on break, and able to pass work on), a Resource available, or a Custom expression you write (using queries like Activity("X").FreeCap, Activity("X").Contents, Resource("X").FreeUnits, or Resource("X").Utilization).
• Capacity Threshold: how much free capacity is required (default 1).
• Resource Requirements: the resources and quantities that must be free, when checking resource availability.
• Priority: the order in which this route is tried against the other availability routes from the same source.

For the Cost, Logic, and Seed tabs, see Cost, Logic, and Seed.
